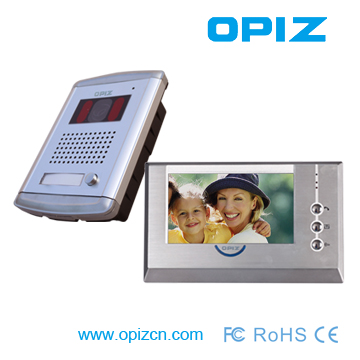

villa video door phone from China manufacturer - Shenzhen OPIZ Electronics Co.LTD

Product Detail

Model No.: OP-D6D6&OP-D6A6

Production Capacity: 5000 sets /month

Delivery Date: 1-20 days

Camera: 420 color TV Lines

power supply: AC adapter from indoor phon...

wiring: 4 wires

Means of Transport: Air,

Packing: carton

Power: 100V-240V

Brand Name: OPIZ

warranty: 1 year

screen: 7 inch TFT LCD

1. home audio&video parts with name plate
2. IR CCD camera
3. Clear voice
4. 420 color TV lines
5. CE ,FCC,RoHS

System		Video door phone for villa	Model NO.		OP-D6D6 & D6A6
Technical specification
Material	Camera: aluminum Monitor: aluminum
Temperature	-40°C~70°C			Working voltage		DC12V-15V
Pressure	86Kpa-108Kpa			Humidity		45%-95%
Static current	Camera: 0.17mA			Fire endurance		IP33
	Monitor: 20 mA			Screen		7''color LCD
Working current	Camera: 146mA			Connection		4 wire
	Monitor: 300 mA			Installation		Surface mounted
External dimension	Camera: 185(L)123(W)35(H)mm			Output		300,000pc/year
	Monitor: 255(L)150(W)30(H)mm
Resolution	Color:420TV lines
Match way	One camera can support up to 3 monitors
Function	1. Dual-talking; unlock; monitor; video intercom,
	2. One button to individual room; power indicator; Infrared night vision
	3. Adjustable brightness,contrast and volume; 3 songs for option; Auto shut down
Certificate	Complies 2006/95/EC, FCC Part15, TB-RoHS107809(report No.)
Exhibition	2011 16-18 Jan. Exhibition in Dubai Booth No.3-302C
	2010 5-8 Oct. Security Essen, Germany
	2010 25-27 May Exposec 2010 Sao Paulo, Brazil
	2010 17-19 Jan. Intersec Middle East 2010 Dubai
